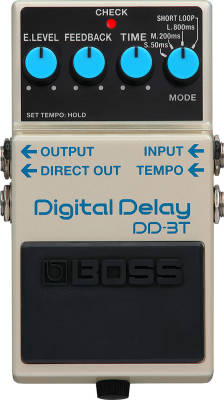

BOSS's iconic DD-3 Digital Delay has been a pedalboard staple since 1986, loved everywhere for its great sound and simple operation. With the DD-3T, the classic stomp has been updated with enhanced functionality while fully retaining the original's sound and control layout. It's now possible to tap in delay tempos using the onboard switch or an external one, with your choice of three beat subdivisions. And the direct output jack has been moved next to the main output, providing easier connectivity for wet/dry setups.
Features
• Updated version of the industry-standard DD-3, with enhanced functionality for modern players
• Ultra-easy operation for fast sound creation
• Delay time of 12.5 to 800 ms, divided into three ranges for quick setup
• Tap in tempos with the onboard pedal switch or an external footswitch
• Short Loop setting for creating phrase loops (same as the Hold function on the original DD-3)
• Direct output for sending dry and wet sounds to separate amps
• Main and direct output jacks now positioned on one side of the pedal
• BOSS five-year warranty
Specs
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls:
• MODE knob
• TIME knob
• FEEDBACK knob
• E.LEVEL (Effect Level) knob
• Pedal switch
Indicator: CHECK indicator (Used for indication of check battery)
Connectors
• INPUT jack: 1/4-inch phone type
• OUTPUT jack: 1/4-inch phone type
• DIRECT OUT jack: 1/4-inch phone type
• TEMPO jack: 1/4-inch phone type
• DC IN jack
Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw: 45 mA
Expected battery life under continuous use*:
• Alkaline: Approx. 11.5 hours
• Carbon: Approx. 3 hours
